Design patterns in images

Intention:

Purpose of the article is to describe and remember GOF patterns in a quick way by having a short description and diagram.

This page do not provide entire description and selection principles or use cases for each patern, for more details please refer to the following books:

1. Head First Design Patterns  by Eric Freeman, Elisabeth Robson, Bert Bates, Kathy Sierra.
2. Design Patterns: Elements of Reusable Object-Oriented Software by Erich Gamma, Richard Helm, Ralph Johnson, John Vlissides, Grady Booch.

Description:

Christopher Alexander says:

"Each pattern describes a problem which occurs over and over again in our environment, and then describes the core of the solution to that problem, in such a way that you can use this solution a million times over, without ever doing it the same way twice" [1]

Pasterns are split in 3 main groups:

Group	Pattern	Description
Structural	Adapter	Allows the interface of an existing class to be used from another interface.
	Bridge	Allows decoupling abstraction from implementation so that the two can vary independently.

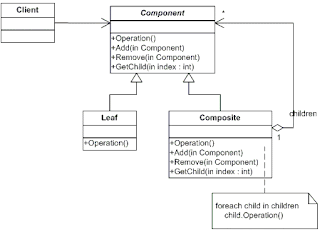

	Composite	Responsible to compose objects structure into tree and enable to treat them in the same way as a single object.
	Decorator	Allows behaviour to be added to an individual object without affecting the behaviour of other objects from the same class.
	Facade	Provides a simplified interface to a larger body of code or subsystem.
	Flyweight	Allows to minimize memory used by sharing as much data as possible with other similar objects storage costs of objects.
	Proxy	A wrapper or agent object that is being called by the client to access the real serving object behind the scenes.
Creational	Abstract Factory	Provides a way to encapsulate a group of individual families without specifying their concrete classes.
	Builder	Create composite object and describes the way how the object gets created.
	Factory Method	Creating objects without having to specify the exact class of the object that will be created.

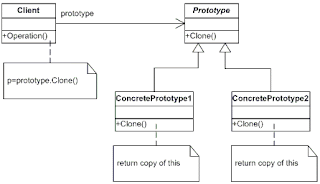

	Prototype	Describes type of objects to be created which is determined by a prototypical instance.
	Singleton	Restricted creation of instances and promote sole instance per system.

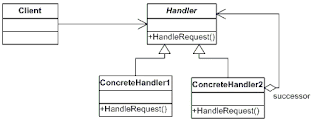

Behavioral	Chain of Responsibility	Each processing object contains algorithms that defines the types of command objects that it handles.
	Command	An object is used to encapsulate all information needed to perform an action or trigger an event at a later time.
	Interpreter	Specifies how to evaluate grammar and interpretation of a language.
	Iterator	Used to describe the way how to traverse a container and access the container of the elements.
	Mediator	Defines an object that encapsulates how and which objects interact with each other.

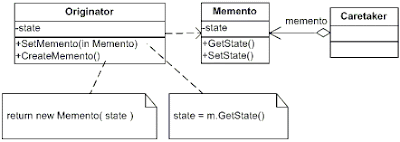

	Memento	Provides the ability to restore an object to its previous state.
	Observer	Subject maintains a list of its dependencies, and notifies them automatically of any state changes.
	State	Encapsulate different behaviour for the same object based on its internal state.

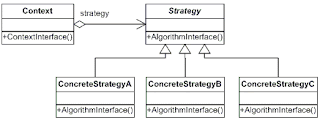

	Strategy	Enables an algorithm's behaviour to be selected at a runtime.
	Template Method	Defines the program skeleton of an algorithm in a method.
	Visitor	Allows separate an algorithm from an object structure on which it operates.

Structural Patterns:

Structural patterns is responsible for composition of objects might be named as well entities builder, those pasterns is dealing with data structures.

---

Adapter

---

Bridge

---

---

---

---

---
